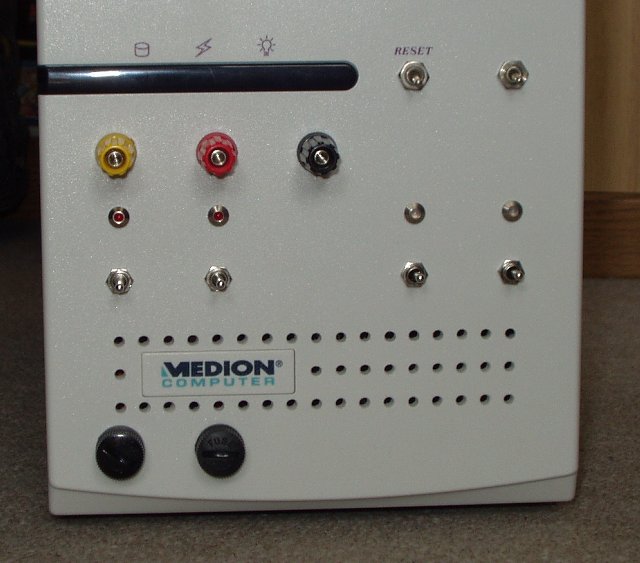

Below the smoked bezel for the LEDs I added three terminals for 12 Volt, 5 Volt and ground. The two voltage-carrying terminals can be switched with the switches below and have control-LEDs to show whether they are on or off. The two switches to the right are for the interior lighting. The two switches besides the LED-bezel will be changed for momentary push-buttons. Those two big black knobs at the bottom are fuse-holders for the terminals and the lights - to protect the power supply when I'm messing around :-)
