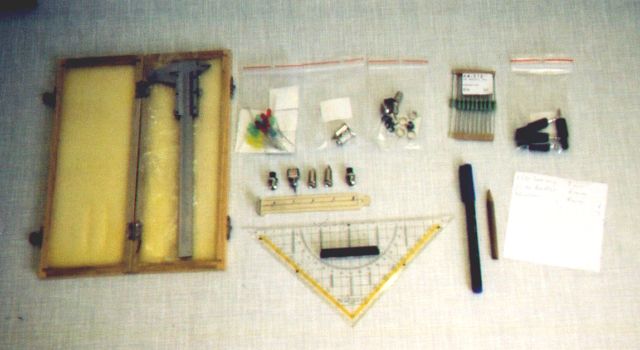

This are some of the parts of the standby-lighting - at the same time the rear part of my baybus. Set square and caliper rule were used to mark the drilling holes on the slot-bracket. Therein I mounted two bright white 5 mm LEDs and a switch to toggle the lighting between inside and outside, as well as three 3.5 mm jack sockets. Two loop back-cables lead from the soundcard (mic-in and line-out) to two of the sockets which are connected to the baybus at the front. The third socket is a branch off from the line-out, so I still have this at the back of the case, too.
